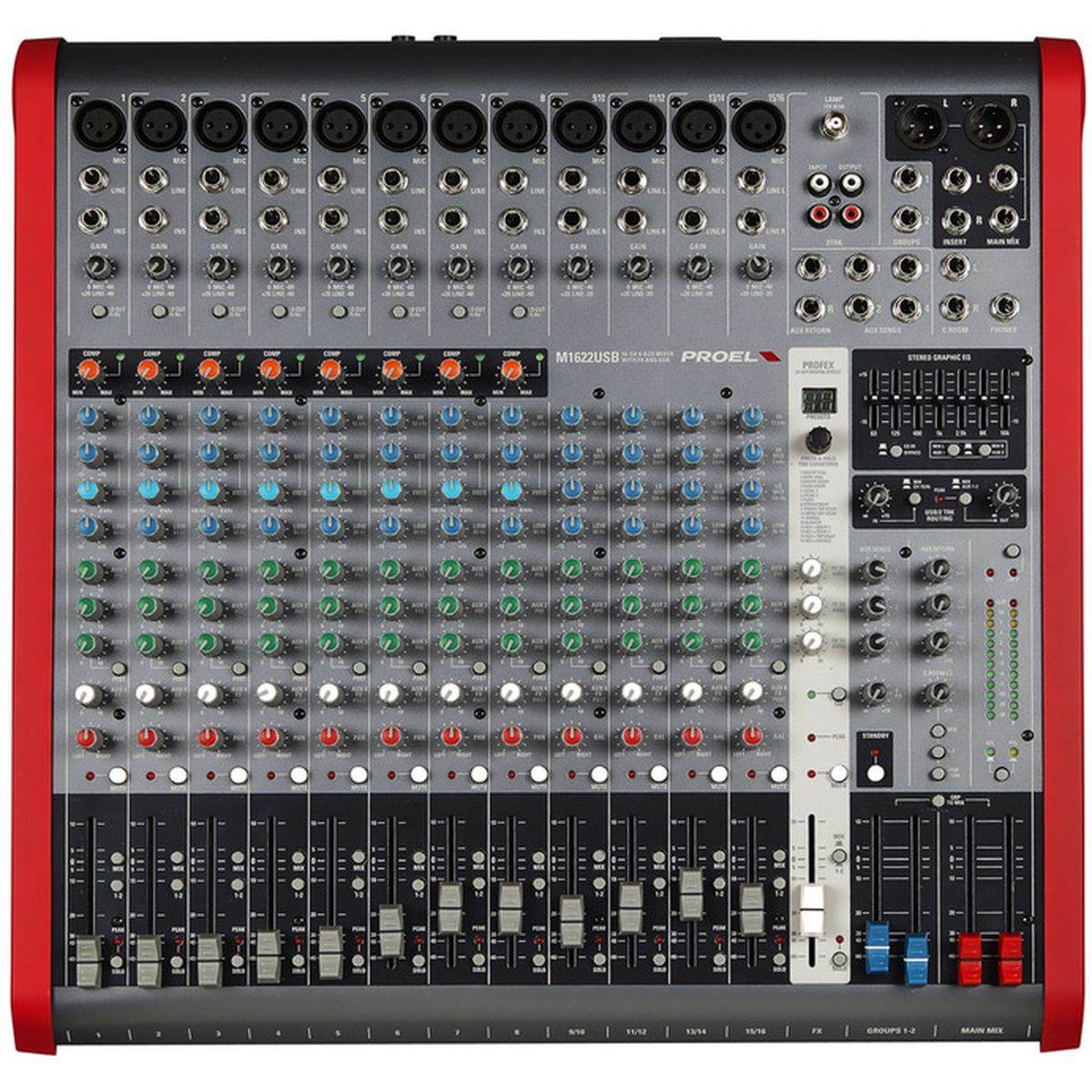

System type: Compact 16-channel 4-bus mixer
Power Supply: Internal power supply Mains Supply Voltage: 110-240 VAC (±10%) 50 / 60 Hz available with Europe mains cord (Shucko plug), US mains cord (NEMA 5-15P plug), UK mains cord (BS1363 plug)
Input Sensitivity: MONO INPUT CHANNEL – Mic Input: from 0 to -60 dB; MONO INPUT CHANNEL – Line Input: from +20 to -40 dB; STEREO INPUT CHANNEL – Mic Input: -0 / -40 dB; STEREO INPUT CHANNEL – Line Input: +20 / -20 dB;
Input Impedance: MONO INPUT CHANNEL – Mic Input: 2 Kohm; MONO INPUT CHANNEL – Line Input:10 Kohm; STEREO INPUT CHANNEL – Mic Input: 2 Kohm; STEREO INPUT CHANNEL – Line Input: 10 Kohm;
Mono Input channel equalization: HIGH (shelving): ±15 dB @ 12KHz; MID (peaking): ±15 dB from 100 Hz to 8 kHz; LOW (shelving): ±15 dB @ 80Hz;
Stereo Input Channel Equalization: HIGH (shelving): ±15 dB @ 12KHz; HI-MID (peaking): ±15 dB @ 3KHz; LO-MID (peaking): ±15 dB @ 500Hz; LOW (shelving): ±15 dB @ 80Hz;
Incorporated effects: 256 (16 presets x 16 variations): HALL, ROOM, VOCAL and PLATE reverbs; STEREO and MONO TAP DELAY; REV + DELAY, REV + TAP DELAY, REV + CHORUS
Crosstalk: meas. at 1 KHz: > 82 dBu;
Power consumption: 75 W
Noise: HUM & Noise unweighted: < -93 dBu; THD + Noise at +4dB, 1kHz: < 0,008 %;
Weight: 6.5 kg (14.3325 lb)
Dimensions (W x H x D): 465 x 91 x 462 mm
Barcode: 8032496003694
Brand: PROEL
